KROHNE: Electromagnetic Flowmeter and Radar Level Transmitters for Water and Wastewater

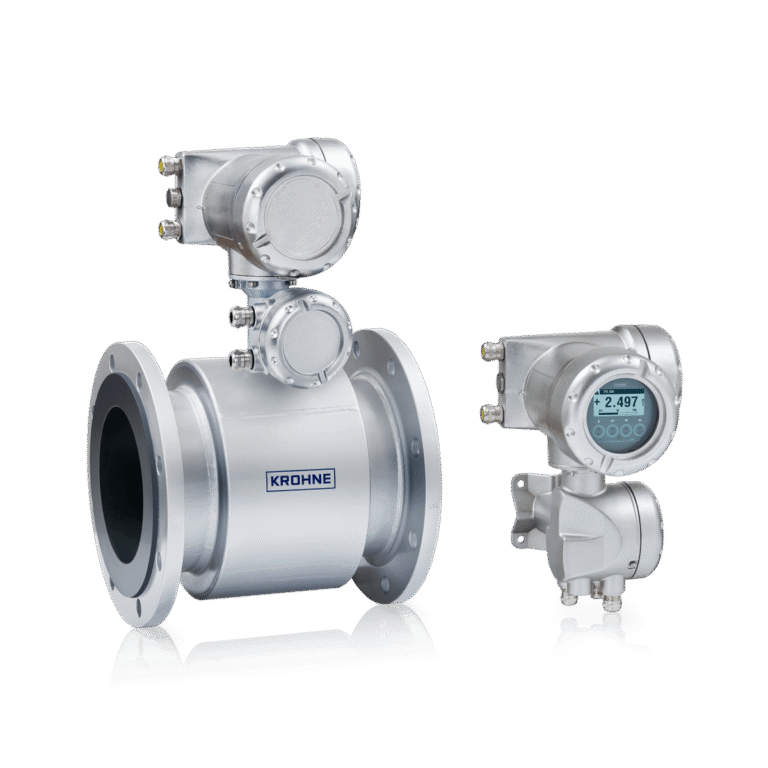

The TIDALFLUX 2300, an electromagnetic flowmeter with integrated, patented capacitive level measurement designed specifically for partially filled pipes in municipal and industrial wastewater systems. The meter provides accurate flow measurement in gravity pipelines and sewers by combining non-contact level sensing with electromagnetic flow technology in a closed, obstruction-free design that maintains high accuracy while reducing installation and maintenance costs compared with open channel systems. With diameters up to DN1600/64 inches and accuracy of ±1 percent of measured value, the TIDALFLUX 2300 is well suited for applications such as surface water, combined and separate sewer networks, treatment plant inlet and outlet runs, and industrial effluent or brine transport, including installations in flooded or direct-burial conditions where an optional IP68-rated version can be deployed.

Designed for demanding wastewater environments, KROHNE’s TIDALFLUX 2300 delivers reliable bi-directional flow measurement across a wide dynamic range and features a chemically and abrasion-resistant PUR liner for long-term durability. Because the electrodes are not in contact with floating deposits, the flowmeter maintains dependable performance in challenging applications involving wastewater, slurries, and other difficult process media. Standard factory calibration eliminates the need for on-site calibration, while extensive diagnostics and on-site verification with the OPTICHECK service tool simplify maintenance and support long-term measurement confidence.

KROHNE will also highlight its OPTIWAVE 1500 Series radar level transmitters, including the OPTIWAVE 1530 and OPTIWAVE 1560. Designed for solids and liquid applications, the transmitters provide accurate, non-contact level measurement in small to tall silos, narrow tanks, stockpiles, bunkers, and vessels with internal obstructions. Suitable for industries including water and wastewater, metals, minerals, and mining, the OPTIWAVE 1500 Series combines advanced radar technology with a rugged, maintenance-free design.

Built with fully potted electronics and a flush-mounted concave PVDF lens antenna, KROHNE’s OPTIWAVE 1500 Series withstands dust, condensation, vibration, and harsh process conditions while maintaining stable radar performance. A narrow 4° beam angle enables accurate measurements in confined spaces and around internal obstructions, while Bluetooth connectivity with the OPTICHECK Level Mobile app simplifies commissioning and remote configuration from ground level. Integrated diagnostics and on-site verification further reduce downtime by providing continuous device health monitoring and streamlined documentation.

WEFTEC 2026 takes place from September 26-30, 2026 in New Orleans, LA.
